詳細情報 |
|||
| 名前: | PSAの医学の酸素の植物 | 純度: | 90%~99.5% |
|---|---|---|---|
| 油分: | オイルフリー | 材料: | ステンレス鋼または炭素鋼 |
| 容量: | 5Nm3/h~60Nm3/h | プレッシャー: | 調整可能 |
| ハイライト: | PSA medical oxygen plant with ISO13485,medical oxygen generator with certification,ISO13485 certified oxygen generation system |
||
製品の説明

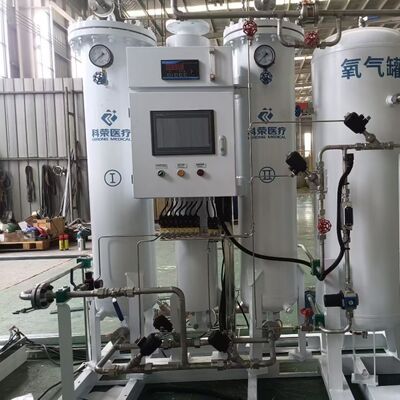

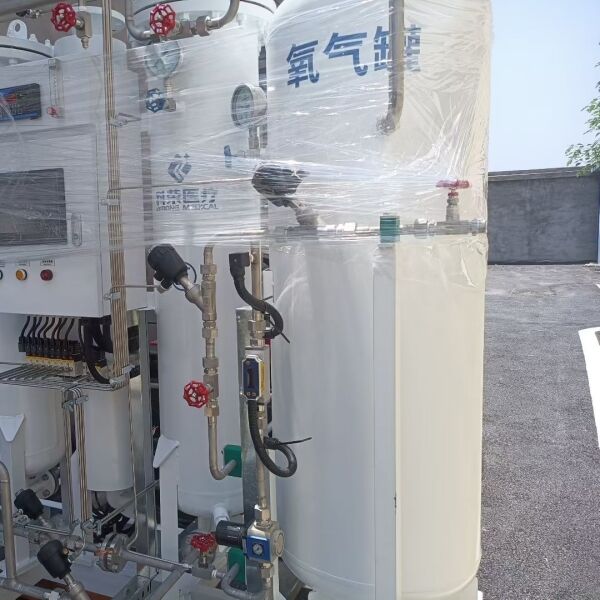

Psa Medical Oxygen Plant With International ISO13485 Medical Device Certificate
Product description
Our PSA Medical Oxygen Plant with International ISO13485 Medical Device Certificate is designed to provide a reliable, continuous supply of medical-grade oxygen for hospitals, clinics, and healthcare facilities. Utilizing advanced Pressure Swing Adsorption (PSA) technology, the system produces oxygen with purity of 93% ±3%, ensuring safe and consistent performance for patient care. Manufactured under ISO13485-certified medical device quality management standards, it meets stringent international requirements for safety, quality, and reliability. Featuring fully automatic PLC controls, real-time oxygen purity monitoring, energy-efficient operation, and low maintenance, this oxygen plant offers a cost-effective, on-site alternative to cylinders and liquid oxygen, ensuring uninterrupted oxygen availability for critical medical applications.
Technical Parameters
● Purity——93%±3% or with the oxygen purifier can get maximum 99.5%
● Pressure——0.3~0.6 Mpa or with the booster to get 30Mpa or more
● Atmospheric dew point——≤－40℃ or more
| Item | Model | Oxygen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) |
| 1 | KRO-1-95 | 1 | 95%±1% | 0.25 |
| 2 | KRO-2-95 | 2 | 95%±1% | 0.50 |
| 3 | KRO-3-95 | 3 | 95%±1% | 0.75 |
| 4 | KRO-5-95 | 5 | 95%±1% | 1.25 |
| 5 | KRO-10-95 | 10 | 95%±1% | 2.50 |
| 6 | KRO-15-95 | 15 | 95%±1% | 3.75 |
| 7 | KRO-20-95 | 20 | 95%±1% | 5.00 |
| 8 | KRO-25-95 | 25 | 95%±1% | 6.25 |
| 9 | KRO-30-95 | 30 | 95%±1% | 7.50 |
| 10 | KRO-35-95 | 35 | 95%±1% | 8.75 |
| 11 | KRO-45-95 | 45 | 95%±1% | 11.25 |
| 12 | KRO-50-95 | 50 | 95%±1% | 12.50 |
| 13 | KRO-60-95 | 60 | 95%±1% | 15.00 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
