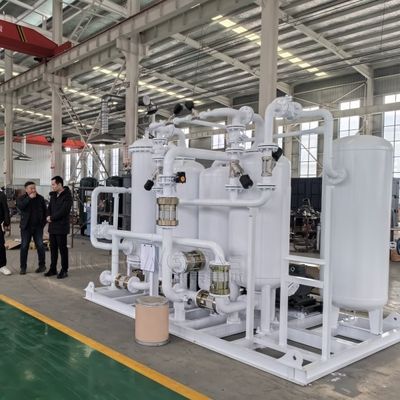

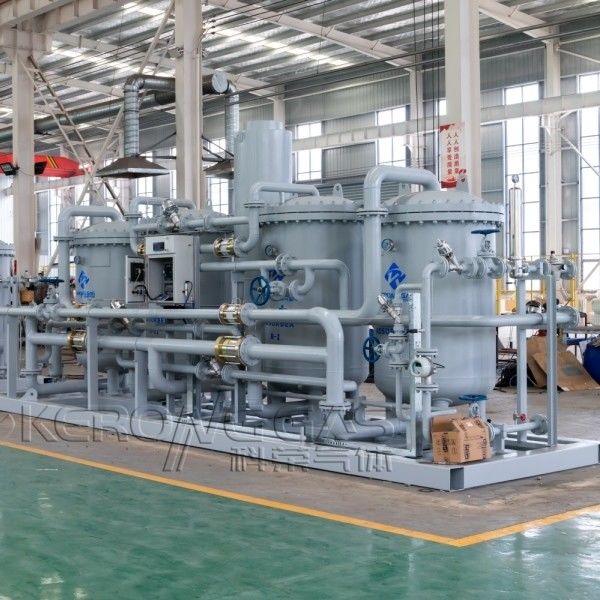

3Mpa Pressure Swing Adsorption Nitrogen Generator For Laser Cutting
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | KERONG GAS |
| 証明: | ISO9001, ISO13485, ISO14001, ISO45001, CE, ASME |
| モデル番号: | KRN、KRNA、KRNAB |
お支払配送条件:
| 最小注文数量: | 1台のパソコン |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 木箱 |
| 受渡し時間: | 8週間 |
| 支払条件: | L/C、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 年間1000pcs |
|
詳細情報 |
|||
| 名前: | 圧力振動吸着窒素の発電機 | 純度: | 90％〜99.999％ |
|---|---|---|---|
| 露点: | -45℃以上 | 材料: | ステンレス鋼または炭素鋼 |
| 容量: | 5nm3/hr〜5500nm3/hr | プレッシャー: | 6barまたは調整可能 |
| ハイライト: | 3Mpa PSA nitrogen generator,nitrogen generator for laser cutting,high-pressure nitrogen gas generator |
||
製品の説明
3Mpa Pressure Swing Adsorption Nitrogen Generator For Laser Cutting
Product description
Our 3MPa Pressure Swing Adsorption (PSA) Nitrogen Generator for Laser Cutting provides ultra-high purity nitrogen (up to 99.99%) at a working pressure of 3MPa, ideal for precision, oxidation-free laser cutting operations. Utilizing advanced PSA technology, it efficiently separates nitrogen from compressed air, delivering a continuous, reliable on-site supply. The fully automated system integrates air compression, drying, filtration, and intelligent controls, offering low maintenance, energy-efficient performance, and consistent gas purity. Compact and skid-mounted, it eliminates dependency on nitrogen cylinders or bulk supply, ensuring uninterrupted production and improved cutting quality for industrial fabrication, sheet metal, and high-precision manufacturing applications.
Technical Parameters
Capacity: 5-5500Nm³/h
Dew point :-45 ℃ or more
Purity :90%~99.9997%
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| 5 | 99.9 | 0.32 | ||
| 4 | 99.95 | 0.3 | ||
| 3 | 99.99 | 0.25 | ||
| 2 | 99.999 | 0.22 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
| 12 | 99.5 | 0.64 | ||
| 10 | 99.9 | 0.64 | ||
| 8 | 99.95 | 0.6 | ||
| 5 | 99.99 | 0.42 | ||
| 4 | 99.999 | 0.43 | ||
| KRN300.01 | 25 | 99 | 1.17 | 1600*800*1700 |
| 22 | 99.5 | 1.17 | ||
| 20 | 99.9 | 1.25 | ||
| 16 | 99.95 | 1.2 | ||
| 10 | 99.99 | 0.83 | ||
| 6 | 99.999 | 0.65 | ||
| KRN300.02 | 40 | 99 | 1.87 | 1600*800*2200 |
| 33 | 99.5 | 1.76 | ||
| 25 | 99.9 | 1.58 | ||
| 20 | 99.95 | 1.5 | ||
| 15 | 99.99 | 1.25 | ||
| 10 | 99.999 | 1.09 | ||
| KRN400.01 | 50 | 99 | 2.4 | 2000*900*1800 |
| 45 | 99.5 | 2.4 | ||
| 40 | 99.9 | 2.4 | ||
| 30 | 99.95 | 2.25 | ||
| 20 | 99.99 | 1.67 | ||
| 15 | 99.999 | 1.63 | ||
| KRN400.02 | 80 | 99 | 3.73 | 2000*900*2300 |
| 70 | 99.5 | 3.73 | ||
| 60 | 99.9 | 3.8 | ||
| 50 | 99.95 | 3.75 | ||
| 30 | 99.99 | 2.5 | ||
| 20 | 99.999 | 2.17 | ||
| KRN500.01 | 100 | 99 | 4.67 | 2400*1000*2250 |
| 90 | 99.5 | 4.8 | ||
| 70 | 99.9 | 4.44 | ||
| 55 | 99.95 | 4.13 | ||
| 40 | 99.99 | 3.33 | ||
| 30 | 99.999 | 3.25 | ||
| KRN500.02 | 132 | 99 | 6.2 | 2400*1000*2400 |
| 110 | 99.5 | 5.9 | ||
| 90 | 99.9 | 5.7 | ||
| 70 | 99.95 | 5.3 | ||
| 50 | 99.99 | 4.2 | ||
| 40 | 99.999 | 4.3 | ||
| KRN600.01 | 150 | 99 | 7 | 3100*1200*2400 |
| 130 | 99.5 | 6.9 | ||
| 110 | 99.9 | 6.9 | ||
| 90 | 99.95 | 6.8 | ||
| 60 | 99.99 | 5 | ||
| 50 | 99.999 | 5.4 | ||
| KRN600.02 | 180 | 99 | 8.4 | 3100*1200*2400 |
| 150 | 99.5 | 8 | ||
| 130 | 99.9 | 8.2 | ||
| 110 | 99.95 | 8.2 | ||
| 80 | 99.99 | 6.7 | ||
| 60 | 99.999 | 6.5 | ||
| KRN700.01 | 250 | 99 | 11.7 | 3200*1400*2650 |
| 220 | 99.5 | 11.7 | ||
| 190 | 99.9 | 12 | ||
| 160 | 99.95 | 12 | ||
| 100 | 99.99 | 8.33 | ||
| 80 | 99.999 | 8.67 | ||
| KRN700.02 | 300 | 99 | 14 | 3200*1400*2800 |
| 260 | 99.5 | 13.8 | ||
| 220 | 99.9 | 13.9 | ||
| 180 | 99.95 | 13.5 | ||
| 120 | 99.99 | 10 | ||
| 100 | 99.999 | 10.8 | ||
| KRN800.01 | 350 | 99 | 16.33 | 3300*1600*2650 |
| 300 | 99.5 | 16 | ||
| 250 | 99.9 | 15.8 | ||
| 210 | 99.95 | 15.8 | ||
| 150 | 99.99 | 12.5 | ||
| 120 | 99.999 | 13 | ||
| KRN800.02 | 400 | 99 | 18.6 | 3300*1600*3000 |
| 360 | 99.5 | 19.2 | ||
| 300 | 99.9 | 19 | ||
| 250 | 99.95 | 18.75 | ||
| 180 | 99.99 | 15 | ||
| 140 | 99.999 | 15.2 | ||
| KRN900 | 500 | 99 | 23.3 | 4600*1900*3050 |
| 400 | 99.5 | 21.3 | ||
| 360 | 99.9 | 22.8 | ||
| 300 | 99.95 | 22.5 | ||
| 200 | 99.99 | 16.67 | ||
| 160 | 99.999 | 17.33 | ||
| WN1000.01 | 600 | 99 | 28 | 4600*2000*3050 |
| 500 | 99.5 | 26.7 | ||
| 420 | 99.9 | 26.6 | ||
| 350 | 99.95 | 26.25 | ||
| 250 | 99.99 | 20.83 | ||
| 200 | 99.999 | 21.7 | ||
| KRN1000.02 | 720 | 99 | 33.6 | 4600*2000*3350 |
| 600 | 99.5 | 32 | ||
| 500 | 99.9 | 31.6 | ||
| 420 | 99.95 | 31.5 | ||
| 300 | 99.99 | 25 | ||
| 250 | 99.999 | 27 | ||
| KRN1100 | 880 | 99 | 41 | 4800*2200*3350 |
| 720 | 99.5 | 38.4 | ||
| 600 | 99.9 | 38 | ||
| 500 | 99.95 | 37.5 | ||
| 350 | 99.99 | 29.2 | ||
| 300 | 99.999 | 32.5 | ||
| KRN1200 | 1000 | 99 | 50 | 5000*2200*3460 |
| 860 | 99.5 | 45.8 | ||
| 720 | 99.9 | 45.6 | ||
| 600 | 99.95 | 45 | ||
| 400 | 99.99 | 40 | ||
| 350 | 99.999 | 43.8 | ||
| KRN1300 | 1200 | 99 | 56 | 5200*2200*3650 |
| 1000 | 99.5 | 53.3 | ||
| 860 | 99.9 | 54.5 | ||
| 660 | 99.95 | 49.5 | ||
| 450 | 99.99 | 37.5 | ||
| 400 | 99.999 | 43.3 | ||
| KRN1400 | 1400 | 99 | 65 | 5400*2200*3750 |
| 1200 | 99.5 | 64 | ||
| 1000 | 99.9 | 63.3 | ||
| 800 | 99.95 | 60 | ||
| 500 | 99.99 | 41.7 | ||
| 450 | 99.999 | 48.75 | ||
| KRN1500.01 | 1500 | 99 | 70 | 5600*2200*3850 |
| 1300 | 99.5 | 69 | ||
| 1100 | 99.9 | 69 | ||
| 900 | 99.95 | 67.5 | ||
| 600 | 99.99 | 50 | ||
| 500 | 99.999 | 54 | ||
| KRN1500.02 | 2000 | 99 | 93.3 | 5600*2200*4500 |
| 1700 | 99.5 | 90 | ||
| 1400 | 99.9 | 88 | ||
| 1100 | 99.95 | 82.5 | ||
| 700 | 99.99 | 58.3 | ||
| 550 | 99.999 | 59.6 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
