PSA Nitrogen Generator for Metal Cutting with 5Nm3/hr~5500Nm3/hr Capacity and 6bar Adjustable Pressure
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | KERONG GAS |
| 証明: | ISO9001, ISO13485, ISO14001, ISO45001, CE, ASME |
| モデル番号: | KRN、KRNA、KRNAB |
お支払配送条件:
| 最小注文数量: | 1台のパソコン |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 木箱 |
| 受渡し時間: | 8週間 |
| 支払条件: | L/C、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 年間1000pcs |
|
詳細情報 |
|||
| 名前: | 圧力振動吸着窒素の発電機 | 純度: | 90％〜99.999％ |
|---|---|---|---|
| 露点: | -45℃以上 | 材料: | ステンレス鋼または炭素鋼 |
| 容量: | 5nm3/hr〜5500nm3/hr | プレッシャー: | 6barまたは調整可能 |
| ハイライト: | 5Nm3/hr~5500Nm3/hr PSA Nitrogen Generator,6bar Adjustable Pressure Nitrogen Gas Generator,Remote Control PSA Nitrogen Gas Plant |
||
製品の説明

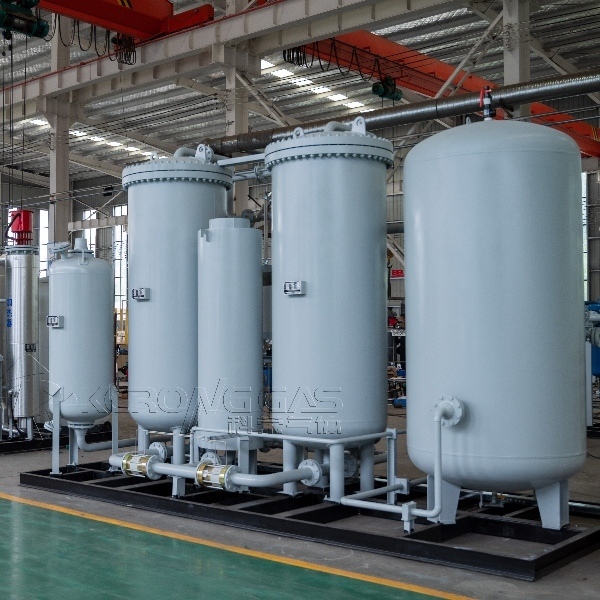

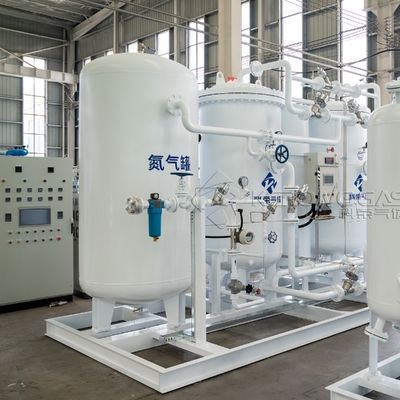

Pressure Swing Adsorption Nitrogen Generator For Metal Cutting
Our Pressure Swing Adsorption (PSA) Nitrogen Generator for Metal Cutting provides a continuous, high-purity nitrogen supply (up to 99.99%) for precise and oxidation-free cutting operations. Utilizing advanced PSA technology, it separates nitrogen from compressed air using carbon molecular sieves, ensuring stable purity and pressure for efficient cutting performance. Designed for on-site production, it eliminates the need for nitrogen cylinders or bulk deliveries. The fully automatic system integrates smart controls, energy-efficient operation, and low maintenance requirements. Compact and robust, this nitrogen generator delivers reliable, cost-effective nitrogen supply, enhancing productivity and cutting quality in metal fabrication and manufacturing industries.
Technical Specifications
General Parameters
- Capacity: 5-5500Nm³/h
- Dew point: -45℃ or more
- Purity: 90%~99.9997%
Model Specifications
| Model | Nitrogen flow rate (Nm3/hr) | Purity (%) | Air need (m3/min) | Net dimensions (mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| 5 | 99.9 | 0.32 | ||
| 4 | 99.95 | 0.3 | ||
| 3 | 99.99 | 0.25 | ||
| 2 | 99.999 | 0.22 |
Featured Functions
- Online monitoring of oxygen purity, pressure, flow rate and dew point
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying
- Air dryer and air filters automatic drainer discharge
- Automatic warning of spare parts replacement
- Remote control / fully automatic operation
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- Compatible with IPC, DCS, and other specific program configurations
Factory Certificates
Frequently Asked Questions
Q: Are you a factory or a trading company?
A: We are a factory with over 20 years of industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as per your request.
Q: What is your lead time?
A: About 60-90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. We can also apply for specific certificates for different countries such as SONCAP for Nigeria, SASO for Saudi Arabia, etc.
Q: What about the warranty?
A: 12-month warranty against any manufacturing defect from the date of equipment acceptance after commissioning or 18 months from delivery (whichever comes first). Beyond warranty period, we provide spare parts and accessories at preferential prices.
Q: What services do you offer?
A: Pre-sales service, in-sales service, and after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q: Which port is near to you?
A: Qingdao port or Tianjin port. We can also arrange delivery to Guangzhou, Shanghai, Urumqi, or other Chinese cities.
Q: Could you offer Origin Certification?
A: Yes, we can provide this as per your request.
