詳細情報 |
|||
| 名前: | 窒素ガス空気分離プラント | 純度: | 90％〜99.999％ |
|---|---|---|---|
| 露点: | -45℃以上 | 材料: | ステンレス鋼または炭素鋼 |
| 容量: | 5nm3/hr〜5500nm3/hr | プレッシャー: | 調整可能 |
| ハイライト: | PSA nitrogen gas generator for hard metal,zero contamination nitrogen separation plant,industrial nitrogen gas generator with warranty |
||
製品の説明
| Attribute | Value |
|---|---|
| Name | Nitrogen Gas Air Separation Plant |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |

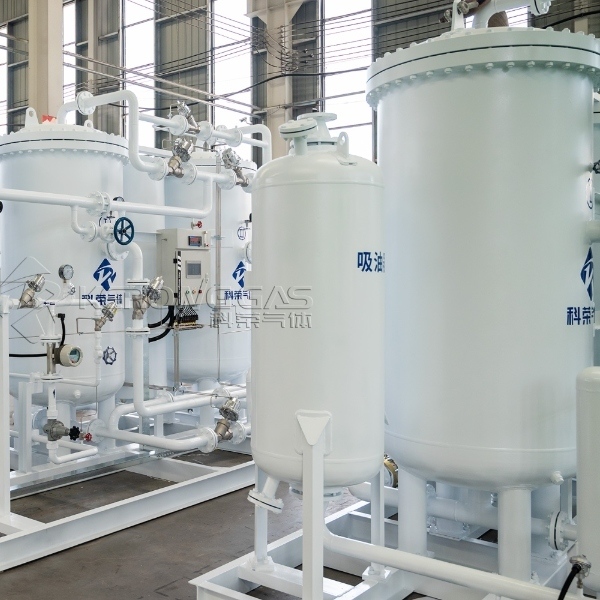

Our Zero Contamination Nitrogen Gas Air Separation Plant delivers ultra-high-purity nitrogen (up to 99.99%) for hard metal production and processing, ensuring oxidation-free, contamination-free environments. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it separates nitrogen from compressed air to provide a continuous, reliable on-site supply. Designed with contamination-free materials and skid-mounted construction, it maintains nitrogen integrity throughout the process. Fully automated with intelligent controls, the system ensures stable pressure, consistent purity, and minimal maintenance. Ideal for hard metal industries, this plant guarantees safe, cost-effective, and high-quality nitrogen supply, enhancing material performance and operational efficiency.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
