詳細情報 |
|||
| 名前: | 窒素ガス空気分離プラント | 純度: | 90％〜99.999％ |
|---|---|---|---|
| 露点: | -45℃以上 | 材料: | ステンレス鋼または炭素鋼 |
| 容量: | 5nm3/hr〜5500nm3/hr | プレッシャー: | 調整可能 |
| ハイライト: | PSA nitrogen gas generator for LNG,over pressure protection nitrogen plant,air separation plant with warranty |
||
製品の説明
| Attribute | Value |
|---|---|
| Name | Nitrogen Gas Air Separation Plant |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |

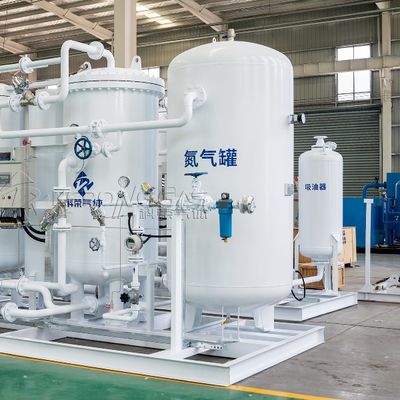

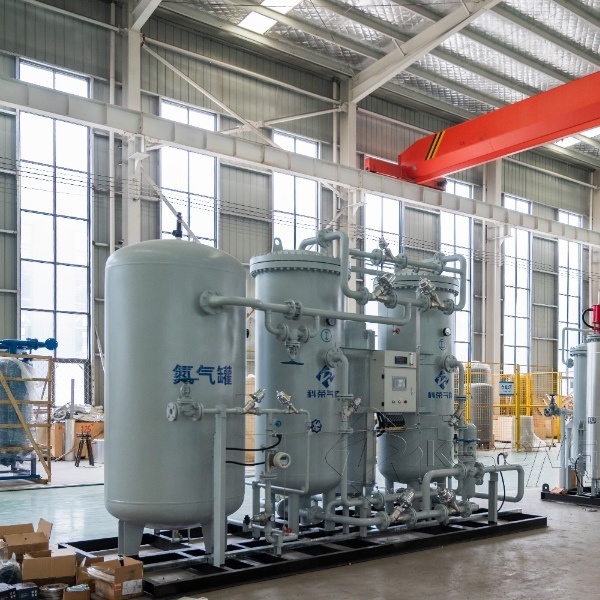

Our Over Pressure Protection Nitrogen Gas Air Separation Plant is engineered for LNG applications, providing high-purity nitrogen (up to 99.99%) with enhanced safety and reliability. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it separates nitrogen from compressed air to deliver a continuous, on-site supply for LNG processing, storage, and transfer operations. Equipped with over-pressure protection, it safeguards equipment and personnel from abnormal pressure conditions, ensuring safe operation under demanding industrial environments. Compact, energy-efficient, and fully automated, this skid-mounted plant minimizes maintenance while providing a stable, reliable nitrogen source for critical LNG applications and operational efficiency.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
