詳細情報 |
|||
| 名前: | 窒素空気分離装置 | 純度: | 90％〜99.999％ |
|---|---|---|---|
| 露点: | -45℃以上 | 材料: | ステンレス鋼または炭素鋼 |
| 容量: | 5nm3/hr〜5500nm3/hr | プレッシャー: | 調整可能 |
| ハイライト: | PSA nitrogen gas generator for steel smelting,over pressure protection nitrogen generator,air separation unit with pressure protection |
||
製品の説明
| Attribute | Value |
|---|---|
| Name | Nitrogen Air Separation Unit |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |

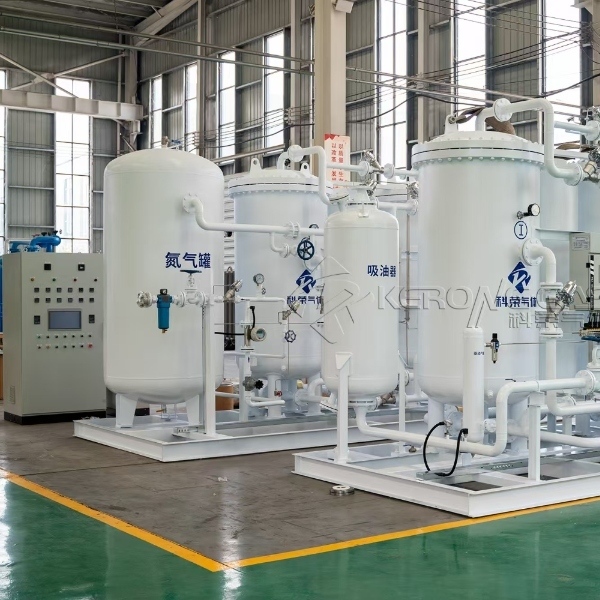

Our Over Pressure Protection Nitrogen Air Separation Unit is designed for demanding steel smelting operations, delivering high-purity nitrogen (up to 99.99%) with enhanced safety features. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it separates nitrogen from compressed air, providing a continuous, on-site supply at stable pressure and purity. The system is equipped with over-pressure protection, ensuring safe operation under high-demand conditions and preventing equipment damage. Compact, energy-efficient, and fully automatic, it integrates air compression, drying, filtration, and control systems for minimal maintenance. This generator provides reliable, cost-effective nitrogen for oxidation-free smelting and improved production quality.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
